Applications：

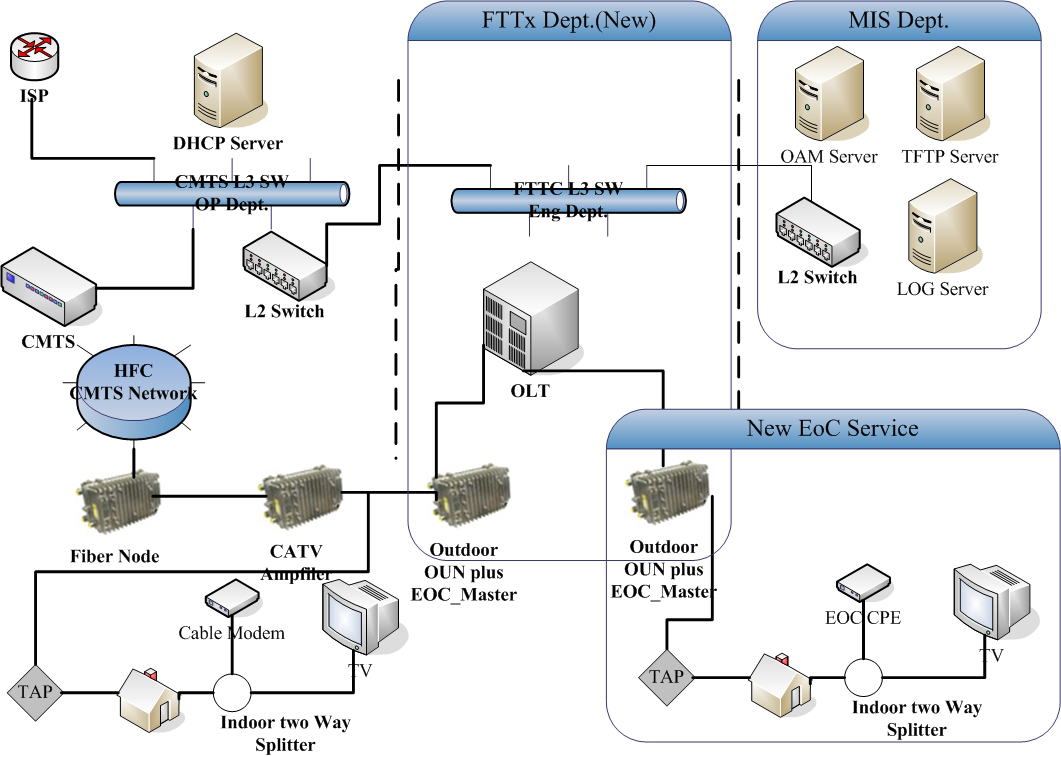

● Extend LAN connectivity to a remote site or between buildings

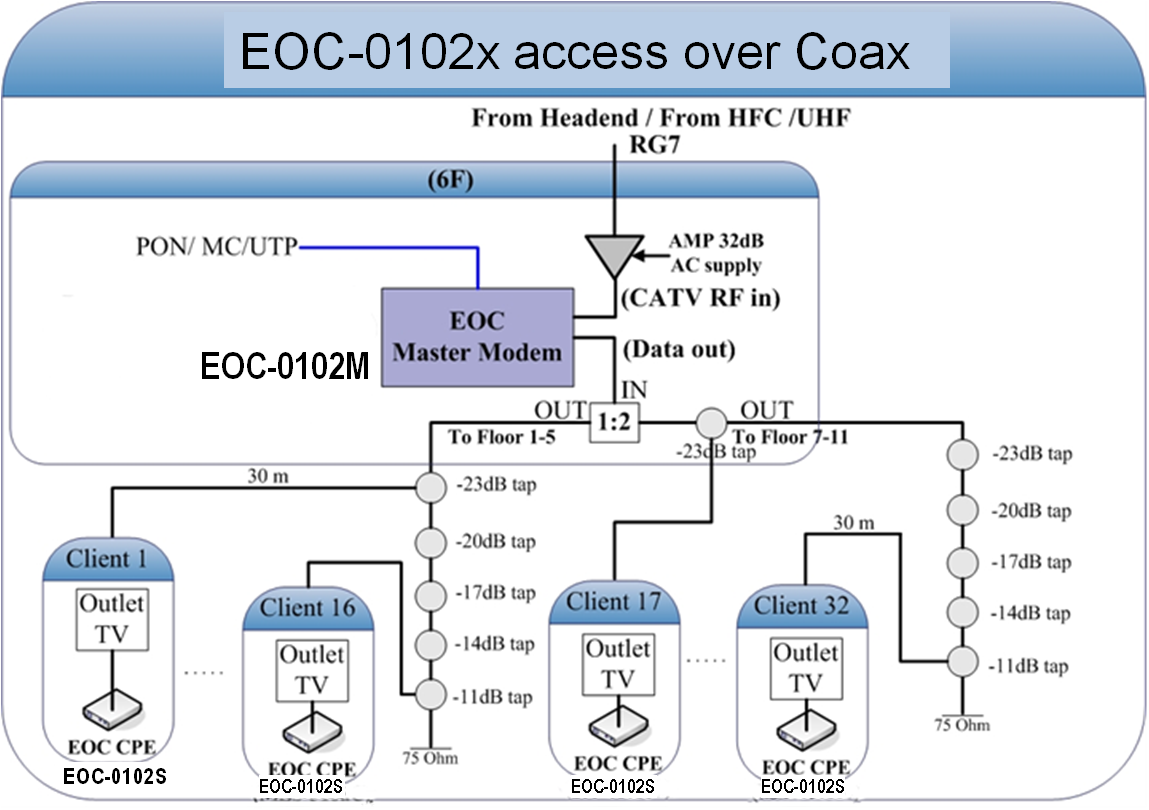

● Connect Ethernet to different Room over existing home Coaxial infrastructure

● Connect new controller technology on the factory floor using existing wiring

● Extend Ethernet connectivity from a backbone network to an isolated location via Coaxial cable

● Transmit Video and traffic controller information over existing Coaxial cable

Specification：

● Network Standards

IEEE802.3 10BASE-T, 10Mbit/s

IEEE802.3u 100BASE-TX, Fast Ethernet at 100Mbit/s, Auto-negotiation

IEEE802.3x Full Duplex and Flow Control

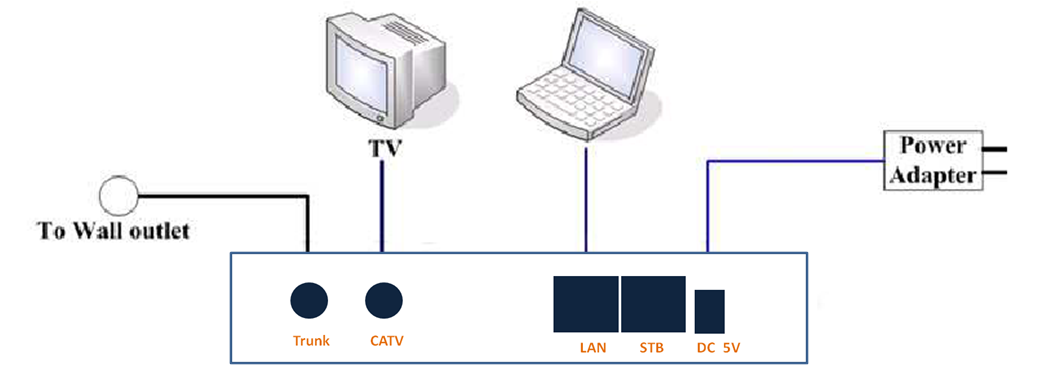

● Connectors

Fast Ethernet ：Two RJ-45 Connectors

Coax ：Two F-Type Female Coax Connectors, One for EoCk, the other for CATV

● Transmission Power and Spectrum

14 +/- 0.5 dBm

12-28 MHZ

● Transmission Speed and Distance

Up to 192Mbps@900 meters

Up to 4000 Feet (-176dBm/Hz Noise Floor)

● Fast Ethernet Interface

10/100 Mbps  (10/100/1000Mbps for EOC-0102M-E)

MDI/MDI-X Auto Crossover

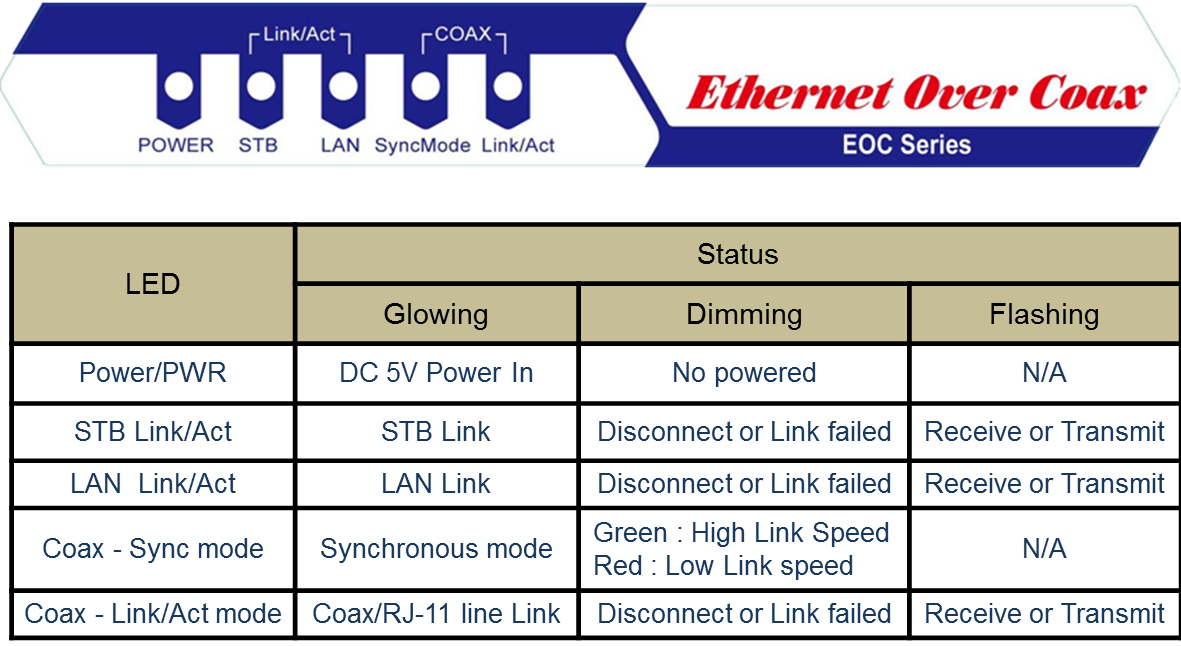

● Indicators

“Power” LED

LAN Link/Act LED, STB Link/Act LED

Coax Link/Act, SyncMode LED

● Environmental Conditions

Operating Temperature ：0°C ~ 55°C (32°F ~ 131°F)

Storage Temperature ：-10°C ~ 65°C (14°F ~ 149°F)

Operating Humidity ：10% ~ 90%，Non-condensing

● Power Requirement

External Power Supply ：12VDC

Power Consumption ：< 5 Watts

● Physical Dimension

155mm(W) x 83mm(D) x 30mm(H)

● Unit Weight

330 g

Emissions Compliance

FCC part 15 Class B, CE Mark
