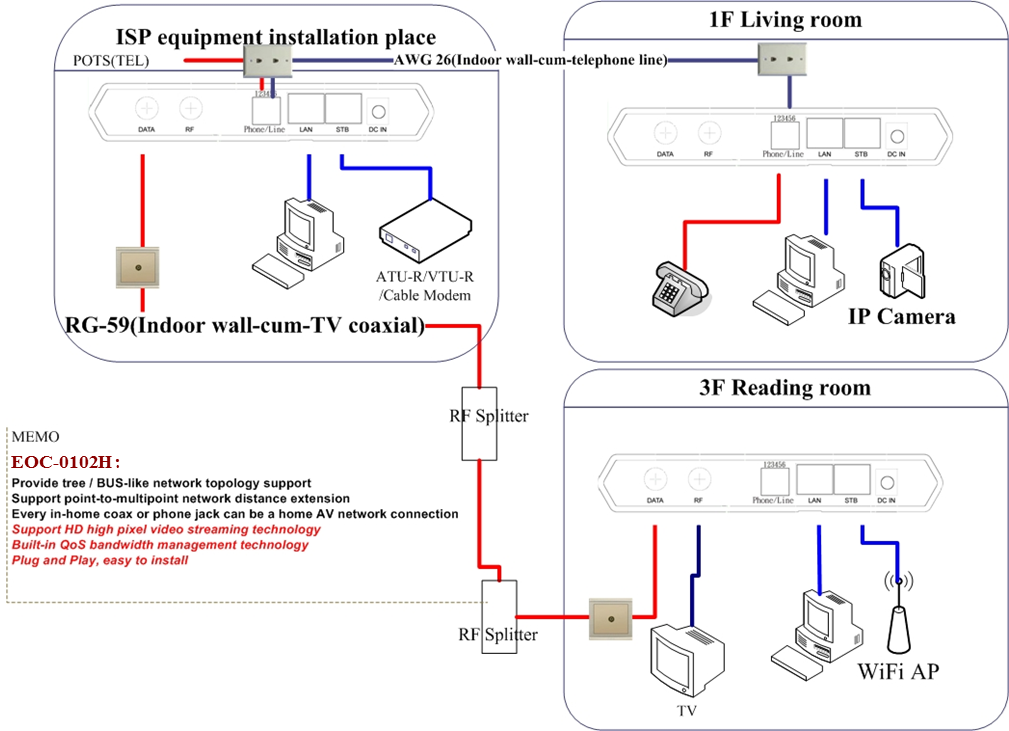

Applications :

● Extend LAN connectivity to a remote site or between buildings.

● Connect Ethernet over the different Room over existing house’s Coaxial/Phone infrastructure

● Extend WIFI wireless signal reception is poor places through Coaxial/Phone wire.

Technical Specification:

● Standards

IEEE802.3 10BASE-T, 10Mbit/s

IEEE802.3u 100BASE-TX, Fast Ethernet at 100Mbit/s, Auto-negotiation

IEEE802.3ab 1000BASE-T

IEEE802.3x Full Duplex and Flow Control

● Protocol

Transparent to High Layer protocol

● Modulation

Support QAM, FDQAM

● Encoding

CSMA/CA Media Access control

● Frequency Range

12-44MHz

● Transmission Power

-2 +/- 1dBm

● Quality of Service

IEEE802.1p Priority mapping, IEEE 802.1p/TOS Priority Queue-Based,

IEEE 802.1Q Tag VLAN Pass-through

Guaranteed QoS based on EOC parameterized QoS

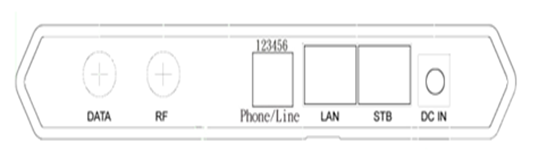

● Connectors

Gigabit Ethernet：Two RJ45 Connectors

RJ11：One Female RJ11 Connectors，pin 3~4 for Line，pin1~2 for Phone

Coax：Two F-Type Female Coax Connectors，One for Line，the other for TV

● Fast Ethernet Interface

10/100/1000 Mbps

MDI/MDI-X Auto Crossover

● Power Protection (Surge)

IEC 61000-4-2 level 4 (ESD) , 15 kV (air discharge), 8kV (contact discharge)

IEC-61000-4-5

MIL STD 883G, method 3015-7 Clas 3B, -25kV HBM(human body model)

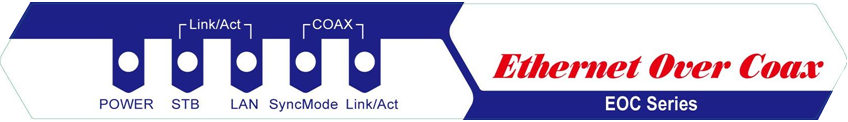

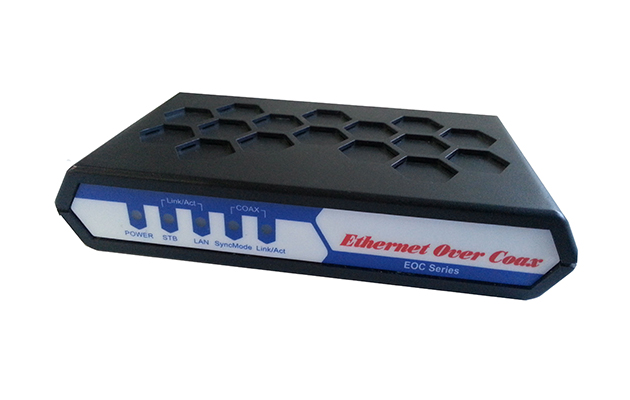

● Indicators

Power LED

STB Link/Act LED

LAN Link/Act LED

Line Link/Sync LED

Line Link/Act LED

● Environmental Conditions

Operating Temperature ：0 ºC ~ 55 ºC (32 ºF ~ 131 ºF )

Storage Temperature： -10 ºC ~ 65 ºC (14 ºF ~ 149 ºF )

Operating Humidity：10 % ~ 90 %，Non-condensing

● Power Requirement

External Power Supply：12V DC

Power Consumption：< 4 Watts

● Dimension

155mm (W) x 83mm (D) x 30mm (H)

● Weight

320g

● Emissions Compliance

FCC part 15 Class B, CE Mark
